Lipstick Grinding Machine Laboratory S150 Three-roller Grinding Machine
Description:
The three-roller grinding machine is mostly used for pigments, lipsticks, lip gloss, and other pastes. It is particularly well suited to grinding and dispersing goods with high viscosity and fine particle size requirements. The grinding action is achieved by the horizontal three rollers squeezing one other and the friction of different speeds. The roller material has varied requirements, such as cold carbide, rust-proof alloy, and so on, and is suited for the application of various materials. The equipment is straightforward, convenient, and simple to clean and maintain. Site restrictions are not applicable. The body is made of cast iron, and the three rollers are covered with a strong nickel alloy that is water cooled.The food business, in particular, makes use of natural high-quality granite grinding facility output.Site restrictions are not applicable. The body is made of cast iron, and the three rollers are covered with a strong nickel alloy that is water cooled.The first choice
of plant protein drink makers grinding equipment is natural high-quality granite grinding production of plant protein drinks with no dregs, no precipitation, no taste, and a high utilization rate of raw materials.
Technical Parameters:
| Roller diameter(mm) | 150 |
| Length of roller working surface(mm) | 300 |
| Roller Speed | slow roller:25.3 |
| Medium roller:63.25 |
| Quick roller:152 |
| Electrical Machinery | model number:SL100-4 |
| Power (KW):2.2 |
| Speed r.p.m:1420 |
| Roller Speed Ratio | 1:2.5:6 |
| Overall Dimension(LxWxH)MM | 820*800*920 |
| Net Machine Weight (kg) | 400 |
| Power Source | 380(220)V/ 50Hz |
| Production Capacity | 25KG/hour |
Uses Directions:
The grinding effect is achieved by the horizontal three rollers' surfaces squeezing each other and friction at varying speeds.
Transmission system: gentle start sprocket, smooth running, no noise. The roller distance is adjusted using a flat-lined handwheel screw, which is simple and accurate to use.
Packing:
|
|

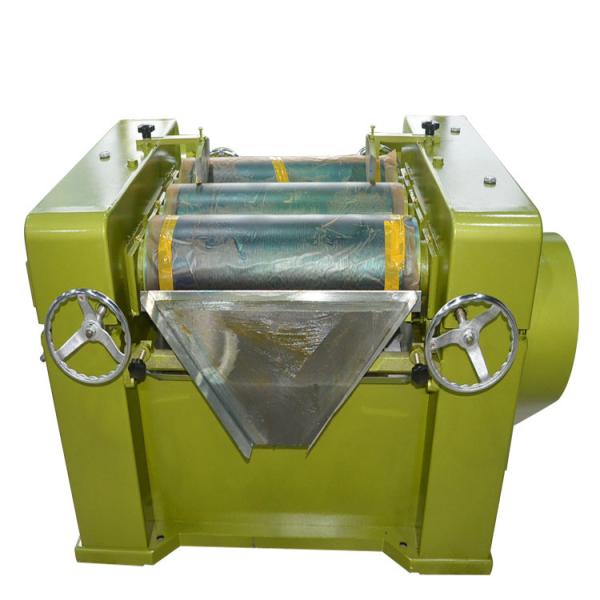

Lipstick Grinding Machine Laboratory S150 Three-roller Grinding Machine Images
|
