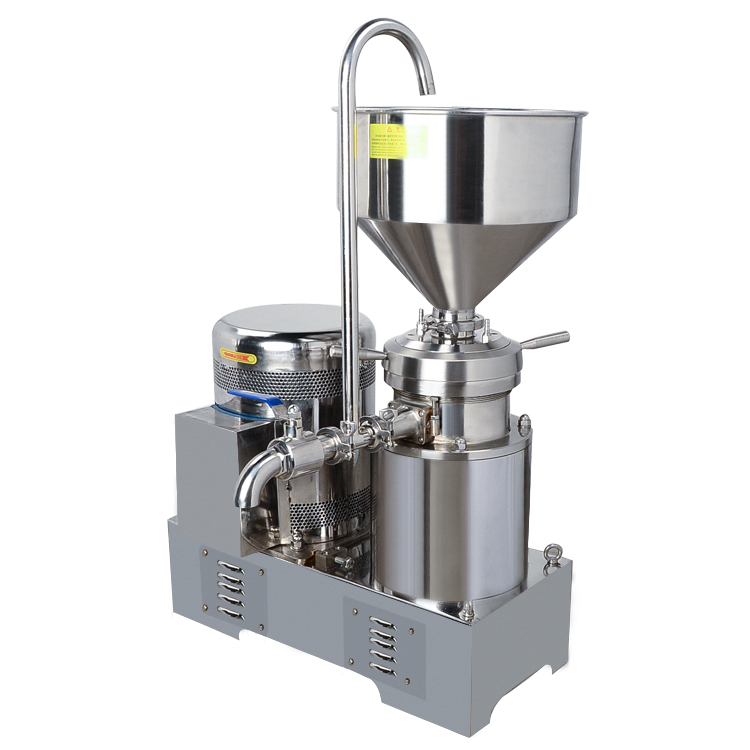

Lipstick Grinding Machine Laboratory S260 Three-roller Grinding Machine
Description:
The basic principle of colloid mill is that the fluid or semi-fluid materials are crushed, emulsified, homogenized, and mixed effectively through the high-speed relative linkage between the fixed teeth and the moving teeth, so that the materials are subjected to strong shear force, friction, and high-frequency vibration and other roles, thus obtaining a satisfactory fine processing of the product.
Technical Parameters:
| Emulsification fineness um (single or multi-cycle) | 5-40 |
| Adjustment range | 1-0.01 |
| Capacity t/h (varies according to material properties) | 0.01-0.2 |
| Electricity engine | Power(KW):1.1 |
| Input voltage(v):380 |
| Speed r/min:2900 |
| Blade diameter (MM) | ∮50 |
| Outlet Diameter (MM) | ∮15 |
| Inlet Diameter(MM) | ∮32 |
| Cooling water pipe diameter (MM) | ∮1/8 |
| Overall dimensions | Length(mm):420 |
| Widths(mm):280 |
| Height(mm):760 |
| Weight | 45KG |
Machine usage:
The basic principle of colloid mill is that the fluid or semi-fluid materials are crushed, emulsified, homogenized and mixed effectively through the high-speed relative linkage between the fixed teeth and the moving teeth, so that the materials are subjected to strong shear force, friction and high-frequency vibration and other effects, so that the satisfactory fine processing of the product is obtained.
Due to the split colloid mill gear speed than the electric motor speed is high, so the output is also larger, even if the same type, the same power of the motor, horizontal output is greater than the vertical colloid mill.
It is not allowed to mix quartz sand, broken glass, metal chips and other hard substances in the processed materials, and it is strictly prohibited to enter the colloid mill for processing and production. Start, shut down and start cleaning before and after the colloid mill body to leave water or liquid materials, prohibit idling and reversal. Otherwise, improper operation will seriously damage the hard mechanical components or static grinding discs, moving grinding discs or leakage and burn the motor and other faults.
